vibratory plate compactor vibrating plate compactor
Payment Terms: |
T/T,L/C |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
QLS80
Production Capacity:
1500 pieces per month
Delivery Date:
within 20days against confi...
clour:
OEM service/ Can supply
Means of Transport:
Ocean
Packing:
in carton box ro carton box...
Brand Name:
SUPER HS

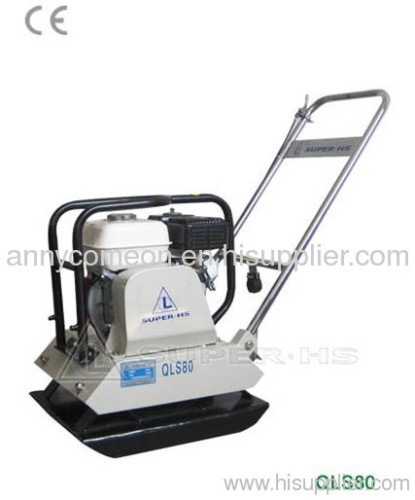

Forward Plate Compactor QLS80
1.CE
2.90KGS 15.0KN
Forward Plate Compactor QLS80
Especially suitable for the sand,gravel and soil in the narrow deep channel, the edge of groudwork,metope and pier.
Plate Compactor QLS80
Features
- The open wide base is availiable for the cleanness by oneself.
- Covenient for the transport with wheels, wheel assembly (optional).
- The front turn base is convenient for approaching the corners.
- The closed strap prevents the sand entering into the machine.
- Efficient shockproof foot reduces the sway of the engine and above handle
- Protecting frame is available as optional
- Water tank is available as optional
Technical specification
Model | QLS80-1 | QLS80-2 | QLS80-3 | QLS80-4 |
Engine | Air-cooled,single cylinder,4-Stroke |
Engine Type | Diesel Kama 170 | Chinese Petrol engine | Petrol Robin EY20 | Petrol Honda GX160 |
Power kw(HP) | 3.1(4.2) | 4.0(5.5) | 3.7(5.0) | 4.0(5.5) |
Weight(kg) | 97 | 90 | 90 | 90 |
Frequency vpm(HZ) | 5400(90) |
Centrifugal Force (Kn) | 15 |
Compaction Depth (cm) | 30 |
Plate Size(cm) | 50x42 |
Dimension(cm/in) | 110*42*85(43x17x33) |
